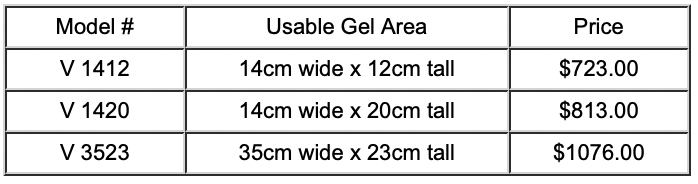

Vertical Slab Gel Units
Vertical slab gels designed to separate proteins
V3523: Usable gel width 35cm. Gel length: 23cm.
14cm Wide (V1412 & V1420): Usable gel width 14cm. Gel lengths: 12cm or 20cm.
Uses all 14cm combs, and spacers.
* Silicone Gasket around upper reservoir prevents buffer leakage without grease, and provides a good background to view sample wells while loading.
* Plain Glass Plates: Silicone sponge block spacers eliminate need for fragile notched plates.
* Solid Construction: Base and upright support made of 3/8" cast acrylic. Reservoirs made of 1/4" cast acrylic.
* Accessories Included: One set glass plates, clips, leads and standard cover.
Please request quote
Vertical Slab - Gel Casting Stands
* Supports Gel Sandwich, vertically, while pouring gels
* Seals bottom edges of glass
* Cast two gels simultaneously
Simple to use:
1. Align spacers at edges between glass plates with silicone foam blocks over short plate. Creating glass sandwich.
2. Applying downward pressure against spacer's sponge block, sealing the space above short plate and flushing spacer with bottom of glass sandwich.
3. Place clips in center of spacer.
4. Center glass sandwich onto casting stand, so that clips clear each side of upright. Push sandwich into silicone foam seal and under holding brackets.
Please request quote

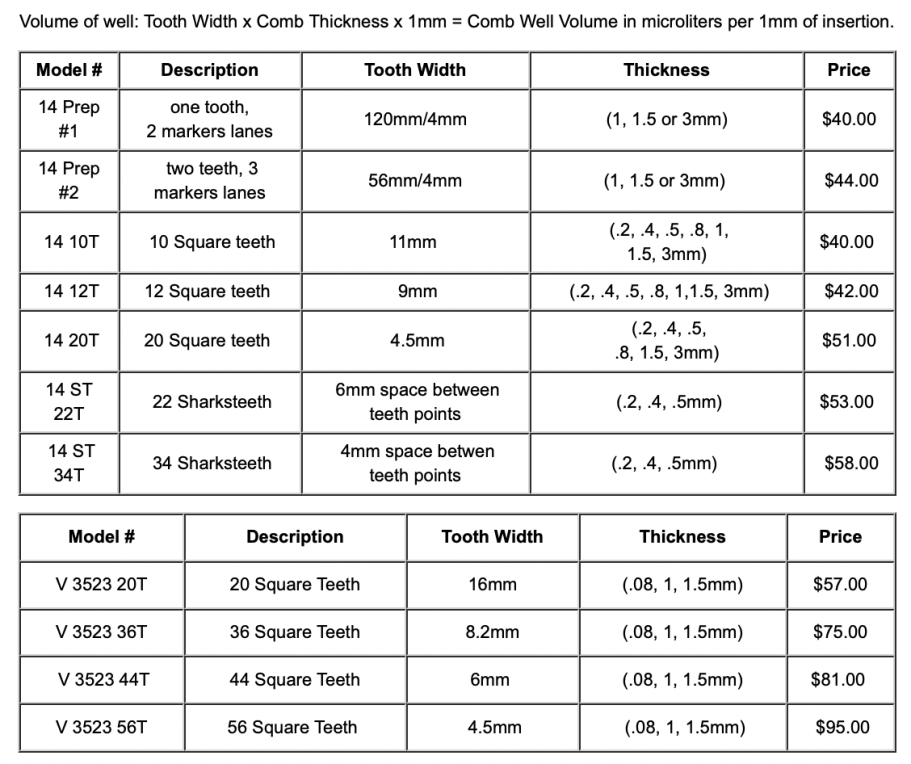

14cm & V 3523 Combs
Vinyl Combs: Precisely machined of rigid vinyl. Fit all Vertical 14cm units

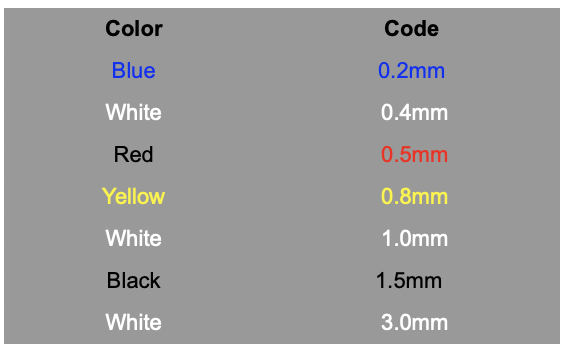

Color-coded: Vinyl combs are color coded for different thickness. Please specify thickness when ordering. Variety of number of teeth, thickness' and styles. * Prep combs come in two styles. *Microtiter combs are used with 8- or 12-multichannel pipetters: 4.5mm spacing loads every second well; 3mm spacing loads every third well.

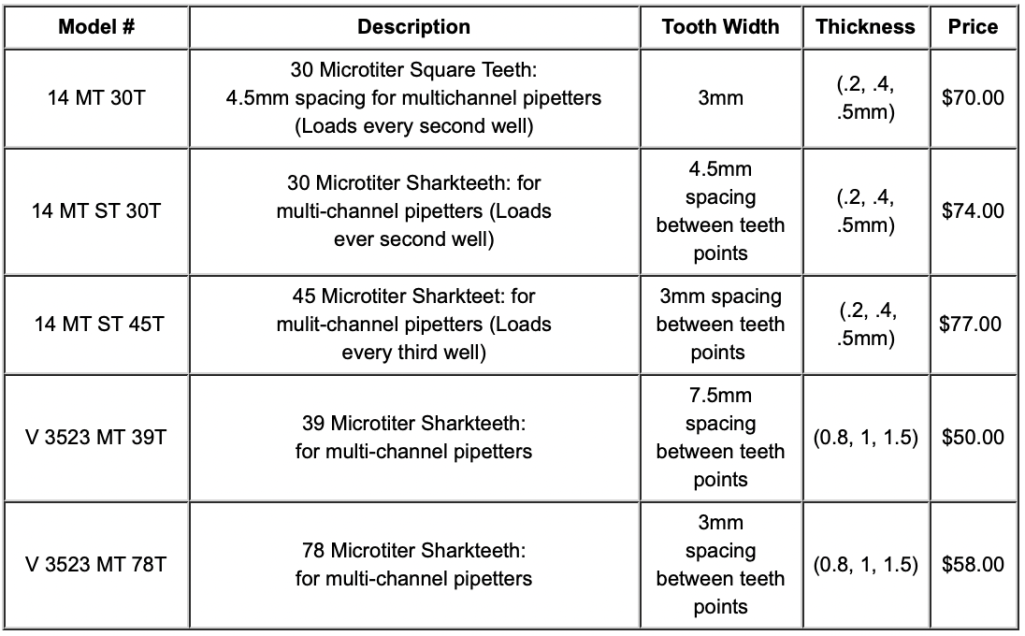

Microtiter Combs
For use with 8- or 12- multichannel pipetters: 4.5 mm spacing loads every second well;
3mm spacing loads every third well. Fits all Vertical 14cm units
Bottom Spacers -- Additional $12.00, To order bottom spacer follow the SS or TS with a -B.
T-Spacers -- $28.00/Pair, To order T-Spacers substitute SS with TS in the Model #

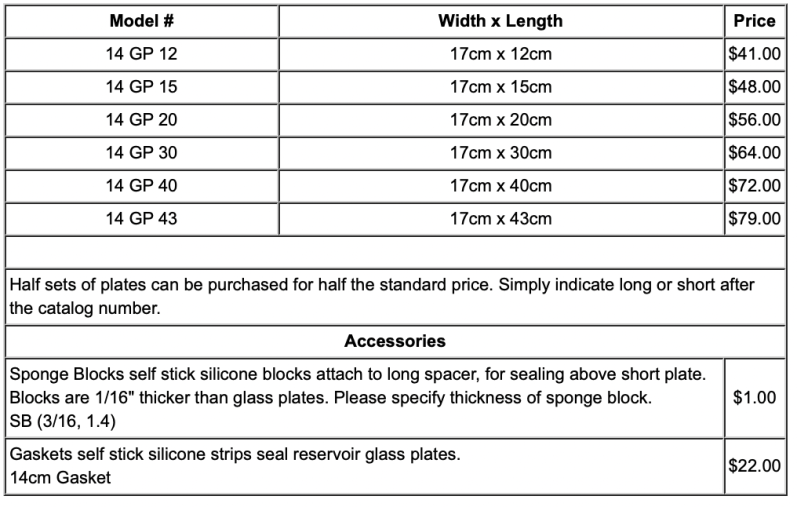

14cm Glass Plates
V 3523 Glass Plates

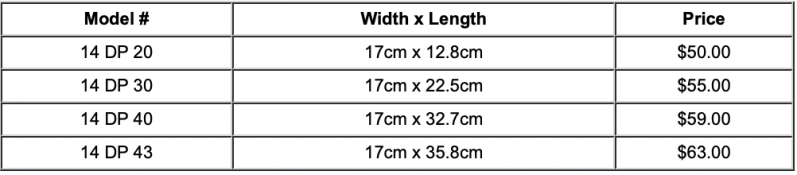

14cm Diffuser Plates
Maintain even temperatures with aluminum heat diffuser plates placed behind the glass sandwich. This method gives excellent results, virtually
eliminating the "smile" effect. Made of 0.100" clear anodized aluminum.

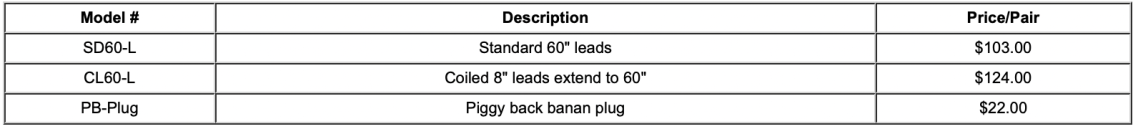

Leads
Made of 18 gauge wire with the finest quality rubber insulation. Leads can be fitted with piggy back plugs for an additional cost. Piggy back plugs allow multiple parallel connections from the same power source.

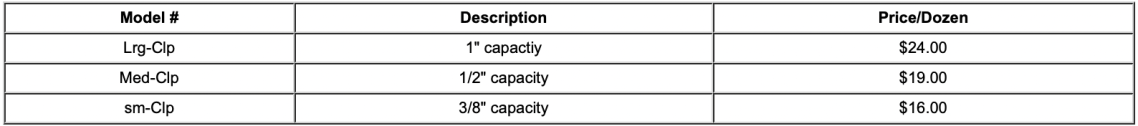

Clips
Binder Clips with plastidip handles are easy on the hands and the glass plates when flipped back
Gaskets
Self stick silicone strips seal reservoir glass plates for Models V14/ VA 1443 (14cm)... $22.00

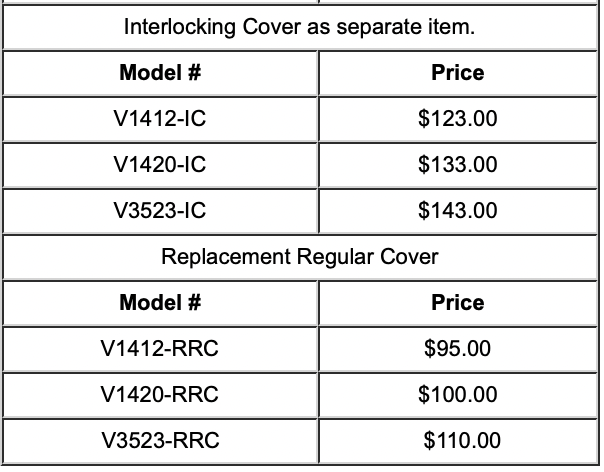

Covers
Interlocking Safety- includes attached leads. To remove IC cover, leads must be disconnected, ensuring safety.
You may exchange regular cover for interlocking cover and pay price difference. When ordering units, Please specify with -ICX after the item#.
Teflon Combs: Precisely machined of Teflon and deburred by hand. Fit all Vertical 14cm units

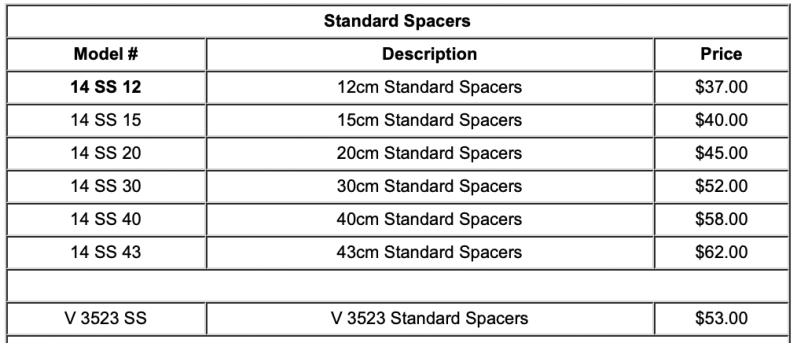

Spacers
Our vinyl 1/2" wide spacers have a silicone sponge block 1/16" taller than the difference in the glass plates. The compressed sponge block seals the space above the short plate and flushes spacer with bottom of glass sandwich. Sold in sets of two. Thickness of spacers should match your comb.
Single Adjustable Gel Unit
Vertical, single, adjustable upper reservoir, slab gel unit designed to separate nucleic acids, or proteins.
Model #: VA 1443
Usable Gel Area: 14cm wide x adjustable 15cm to 43 cm tall.
* 14cm Wide: Usable Gel width 14cm. Uses all 14cm combs, spacers
and glass plates.
* Adjustable Gel Area: Upper Reservoir easily adjusts with one hand
* Solid Construction: Upright support, reservoir backs and base constructed of 3/8" cast acrylic. Reservoirs and rigid back braces constructed of 1/4" cast acrylic. Adjustable from 15cm to 43cm high.
* Silicone Gasket around upper reservoir prevents buffer leakage without grease and provides a good background to view samples while loading
* Plain Glass Plates: Silicone sponge block spacers eliminate need for fragile notched plates
* Removable Reservoirs: Provides easy disposal of buffer
*Accessories Included: One set glass plates, clips, and leads (Combs and Spacers sold separately)
Please request quote
Vertical Double Adjustable Sequencers
• 14cm Wide: VDA 1443 has a usable gel width of 14cm wide. Uses all 14cm combs, and accessories. Unit includes two sets of glass plates, clips, leads.
• 23cm Wide: VDA 2343 has a usable gel width of 23cm wide. Uses all VDA 23cm combs, and accessories. Unit includes two sets of glass plates, clips, leads.
Please request quote
* Ask for pricing on units higher then 43cm, we have made units adjustable up to 65cm
Adjustable Gel Height: Adjustable from 15cm to 43cm or higher, with optional taller 1" Delrin® rods, up to 65cm high. Secured with special Delrin® thumb screws
* Two Simultaneous Gels: Run two gels under identical conditions
* Single Gels: Run by using an upper reservoir block, which seals opening in upper reservoir of the side not in operation
* Silicone Gasket around upper reservoir prevents buffer leakage without grease, and provides a good background to view sample wells while loading
* Maintain Even Temperatures: Clip Aluminum Heat Diffuser Plates behind gel sandwich
* Plain Glass Plates: Silicone sponge block spacers eliminate need for fragile notched plates
* Removable Reservoirs: Provides easy disposal of buffer. Removable 1" Delrin® rods provide easy storage
* Solid Construction: Precisely bored holes assure smooth height adjustment. Reservoirs made of 1/4" cast acrylic.
Base and gel supports made of 3/8" cast acrylic. Base rod

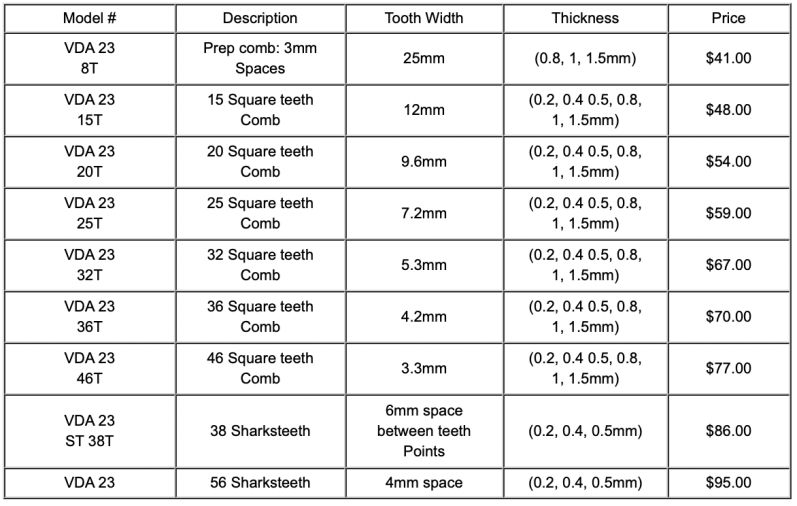

VDA 23cm Combs
Vinyl Combs precisely machined of rigid vinyl. Fit all 23cm Vertical units, variety of number of teeth, thickness's and styles
Color-coded for different thickness'. Please specify thickness when ordering.

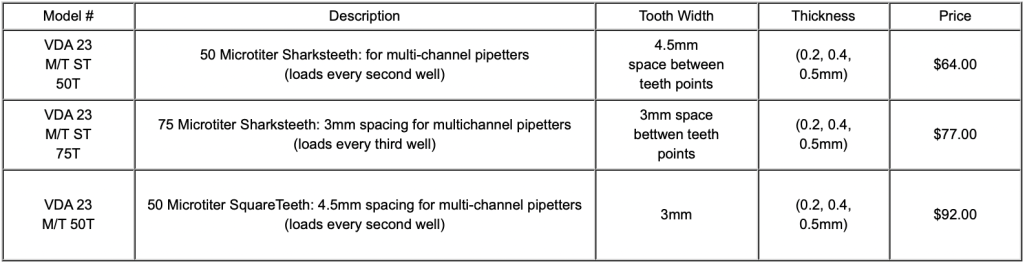

Microtiter Combs: For use with 8-or 12-multichannel pipetters. 4.5mm spacing loads every second well; 3mm spacing loads every third well
Volume of well: Tooth Width x Comb Thickness x 1mm= Comb Well Volume in microliters per 1mm of insertion.
Microtiter Combs: For use with 8- or 12 multichannel pipetters: 4.5 mm spacing loads every second well; 3mm spacing loads every third well

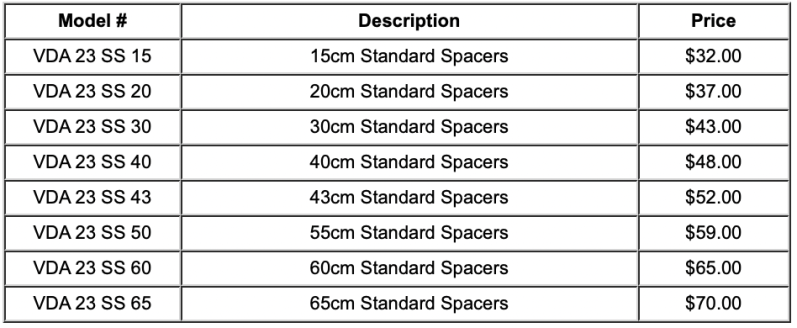

VDA 23cm Spacers
Our vinyl 1/2" wide spacers have a silicone sponge block 1/16" taller than the difference in the glass plates. The compressed sponge block seals the space above the short plate and flushes spacer with bottom of glass sandwich. Sold in sets of two. Thickness of spacers should match your comb
Bottom Spacers -- Additional $12.00, To order bottom spacer follow the SS or TS with a -B.
T-Spacers -- $28.00/Pair, To order T-Spacers substitute SS with TS in the Model #

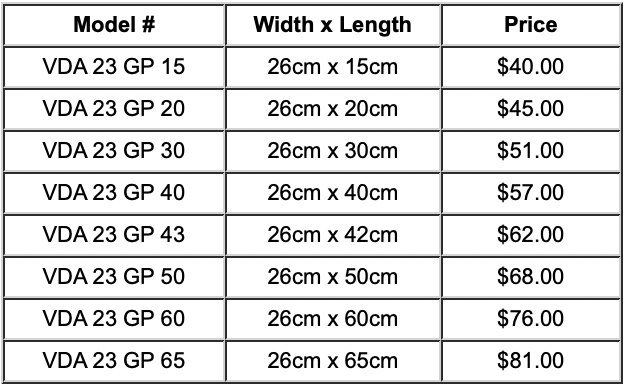

VDA 23cm Glass Plates
(Usable gel width 23cm)

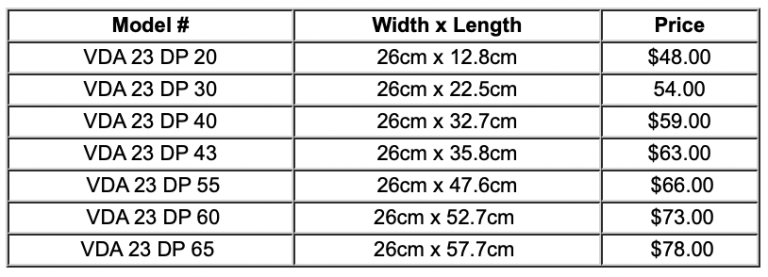

Diffuser Plates
Maintain even temperatures with aluminum heat diffuser plates placed behind the glass sandwich. This method gives excellent results, virtually eliminating the "smile" effect. Made of 0.100" clear anodized aluminum
Gaskets: self stick silicone strips seal reservoir glass plates
#VDA 23 Gasket $22.00
Vertical Sequencers
VS 1417 & VS 1422
Sturdy Construction: These large vertical sequencing units are constructed with 3/8" cast acrylic for the upright supports and base and 1/4" cast acrylic back braces provide additional strength. Top and
bottom reservoirs are made of 1/4" cast acrylic. Full width of a standard X-ray film
VS 1417 usable gel area 14" wide x 17" tall
VS 1422 provides 5 extra inches for longer runs. Usable gel area14" wide x 22" tall
* Maintain Even Temperatures: 0.100" clear anodized aluminum heat, diffuser plate embedded in
the gel support maintains an even temperature over the surface of the glass. This method provides
excellent results, virtually eliminating the "smile" effect
* Buffer Drain Valves: Convenient push-open/ snap close valve for easy disposal of buffer, with protective base. Standard with the VS 1422. Available for VS 1417 at additional cost
*Accessories Included: one set glass plates, clips and leads, and cover
Please request quote
VS 717 and VS 722
Sturdy Construction: These large vertical sequencing units are constructed with 3/8" cast acrylic for the upright supports and base, and 1/4" cast acrylic back braces provide additional strength. Top and bottom reservoirs are made of 1/4" cast acrylic, Half of the width of a standard X-ray film
VS 717 usable gel area 7" wide x 17" tall
VS 722 provides 5 extra inches for longer runs. Usable gel area 7" wide x 22" tall
• Maintain Even Temperatures: .100" clear anodized aluminum heat diffuser plate embedded in the gel support maintains an even temperature over the surface of the glass. This method provides excellent results, virtually eliminating the "smile" effect
* Buffer Drain Valves: Convenient push-open/ snap close valve for easy disposal of buffer, with protective base. Standard with the VS 722. Available for VS 717 at additional cost
* Accessories Included: one set glass plates, clips and leads, and cover
Please request quote

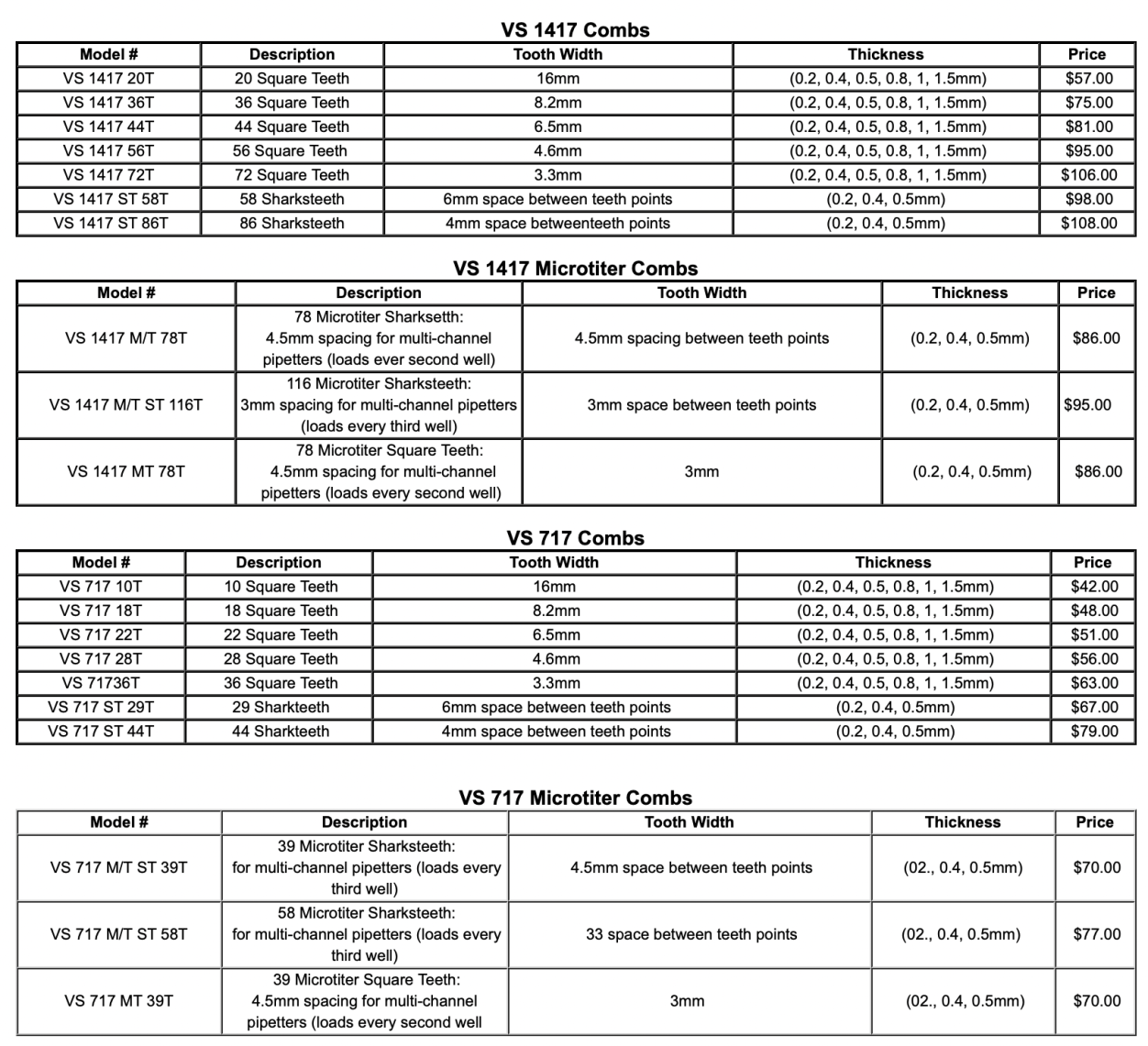

Vertical Sequencing Combs
Vinyl Combs: Precisely machined of rigid vinyl. Variety of number of teeth, thickness's and styles

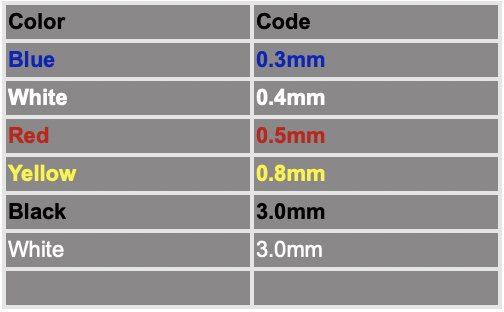

Color-coded: for different thickness. Please specify thickness when ordering
Microtiter Combs: For use with 8- or 12-multi-channel pipetters. 4.5mm spacing loads every second well; 3mm spacing loads every third well
Volume of Well: Tooth Width x Comb Thickness x 1mm= Volume in miroliters per 1mm of insertion

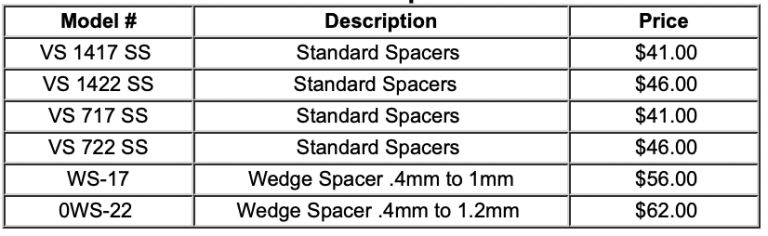

Vertical Sequencers Spacers
Our Vinyl 1/2" wide spacers have a silicone sponge block 1/16" taller than the difference in the glass plates. The compressed sponge block seals the space above the short plate and flushes spacer with bottom of glass sandwich. Sold in sets of two. Thickness of spacers should match your comb.
Bottom Spacers -- Additional $12.00, To order bottom spacer follow the SS or TS with a -B.
T-Spacers -- $28.00/Pair, To order T-Spacers substitute SS with TS in the Model #

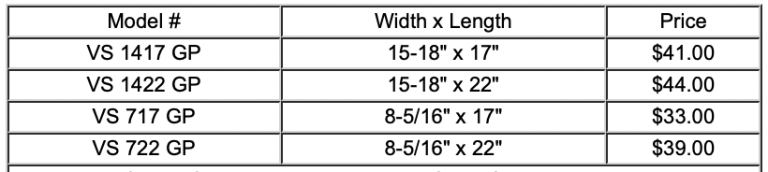

Vertical Sequencers Glass Plates
Accurately cut to size with seamed edges. Sets of two 3/16" thick glass plates. One long plate (3/4" longer than short plate) and one short plate (length given)
Lengths up to 30cm are 1/8" thick
Lengths 30cm and longer are 3/16" thick
VS 717: Actual width 8-5/16"; Usable gel width 7"
VS 1417: Actual width 15-1/8"; Usable gel width 14"
